The Lenovo ThinkAgile HX650 V4 systems are 2-socket 2U systems that feature the 6th Generation Intel Xeon Scalable processors (formerly code named “Granite Rapids”). ThinkAgile HX650 V4 models are designed for deploying industry-leading hyperconvergence software from Nutanix on Lenovo enterprise platforms. Nutanix brings the benefits of cloud-scale technologies to enterprise applications through enterprise storage, data protection, infrastructure resilience, management and analytics, and security.
The 2U systems are available as:
ThinkAgile HX650 V4 systems deliver fully validated and integrated Lenovo hardware and firmware, certified and preloaded with licensed Nutanix software. They also include ThinkAgile Premier support with one single point of contact for support of the hardware and software.
Â
Specifications:
Standard specifications
The ThinkAgile HX650 V4 systems are based on the ThinkSystem SR650 V4 server.
The following table provides an overview comparison between the HX systems.
| Target workloads | Storage heavy |
|---|---|
| Base MTM | 7DG4CTO2WW. |
| Form Factor | 2U |
| Base platform | SR650 V4 Storage |
| Supported Cluster Sizes | 1 or 3+ Nodes |
| CPU | 1 or 2x Intel Xeon SP Gen 6 (Granite Rapids). |
| Memory | DDR5 memory operating up to 6400 MHz 8 channels per CPU 32 DIMMs (16 per processor), 2 DIMMs per channel Supports RDIMMs, 3DS RDIMMs, and MRDIMMs Up to 8TB of system memory |
| Drive Bays | Front: 8x 3.5" SAS/SATA + 4 AnyBay Rear: 4x 2.5" NVMe** (Optional) |
| Drive configurations | Hybrid |
| HBA | 440-16i HBA |
| Boot drives | 2x M.2 |
| OCP networking | 1 or 2x OCP 3.0 adapter 10Gb, 25Gb |
| PCIe networking | Up to 9x PCIe adapters 10Gb, 25Gb, 100Gb |
| GPUs | No GPU Support |
| Hypervisor | Nutanix AHV, VMware ESXi |
| Machine types | 7DG4 |
|---|---|
| Form factor | 2U rack |
| Processor | One or two Intel Xeon 6700P-series or 6500P-series processors (formerly codenamed "Granite Rapids"). Supports processors up to 86 cores and 172 threads, core speeds of up to 4.0 GHz, and TDP ratings of up to 350 W. |
| Chipset | None. Integrated into the processor |
| Memory | 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs and MRDIMMs are supported. RDIMMs operate at up to 6400 MHz at 1 DPC and up to 5200 MHz at 2 DPC. MRDIMMs are supported up to 8000 MHz. |
| Memory maximum | Up to 8TB by using 32x 256GB 3DS RDIMMs |
| Memory protection | ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs), and memory mirroring. |
| Disk drive bays | HX650 V4 Storage : Front drive bays: 8x 3.5-inch SAS/SATA Rear drive bays: 4x 2.5-inch HX650 V4: Front drive bays (24 bays): 24x 2.5-inch NVMe Rear drive bays: None Front bays are 2.5-inch (16 or 24 bays) M.2 support, for OS boot and drive storage support: Internal M.2 module supporting two M.2 drives |
| Storage controller | Up to 36x Onboard NVMe ports |
| Network interfaces | Two dedicated OCP 3.0 SFF slots with a PCIe 5.0 host interface, either x8 or x16. Support a variety of 2-port and 4-port adapters with up to 400 GbE network connectivity. One port of each installed OCP adapter can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support. |

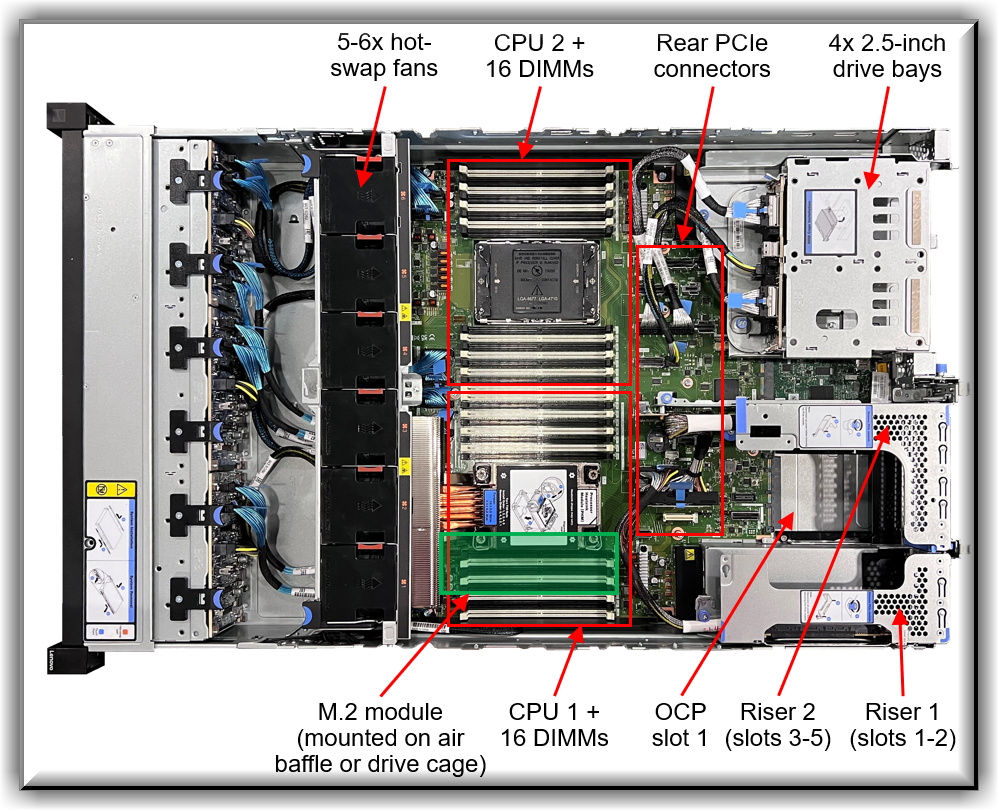

| PCIe slots | Up to 10x slots, all at the rear, plus 2x OCP slots. All slots are PCIe 5.0. The use of Riser 3 and 4 requires 2 processors. Riser 1: 2x low-profile slots, x8 or x16 (CPU 1) Riser 2: 3x full-height slots, two x16 and one x8 (CPU 1) Riser 3: 3x full-height slots, two x16 and one x8 (CPU 2) Riser 4: 2x low-profile slots, x8 or x16 (CPU 2) Other slot configurations are available. See the I/O expansion for details. The server also supports rear 2.5" drive bays, instead of some slots. All configurations include at the rear of the server: 2x OCP slots with PCIe 5.0 x16 or x8 connection |
| GPU support | Supports up to 10x single-wide GPUs or up to 2x double-wide GPUs |

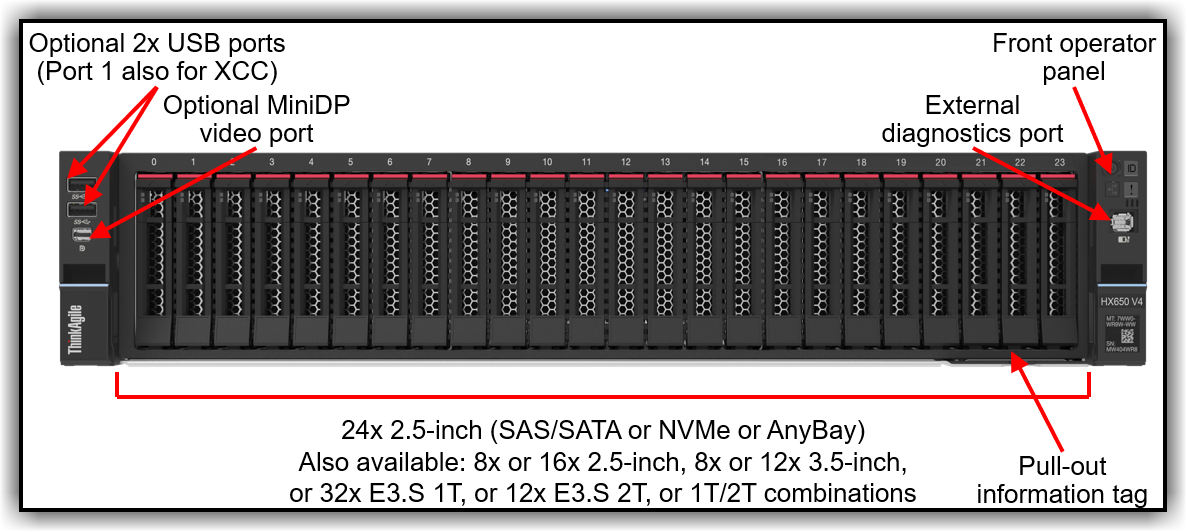

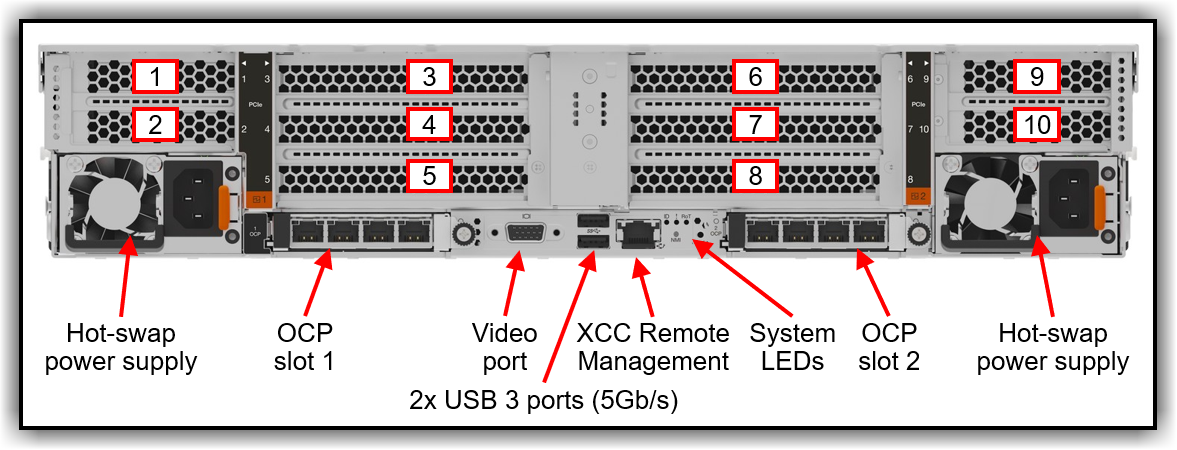

| Ports | Front: External diagnostics port, optional 2x USB 3 (5 Gb/s) port, one supports XCC local management, optional Mini DisplayPort (miniDP) v1.1a video port. Rear: 2x USB 3 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port (installs in a slot). Support for an optional second RJ-45 1GbE systems management port for XCC remote management (installs in OCP adapter slot). Support for an optional adapter to share an incoming remote management network connection across 4 servers (installs in an OCP slot). Internal: Optional 1x USB 3 (5 Gb/s) connector for operating system or license key purposes |
| Cooling | 6x (with two processors installed) or 5x (with one processor installed) single-rotor or dual-rotor hot swap 60 mm fans, configuration dependent. Fans are N+1 redundant, tolerating a single-rotor failure. One fan integrated in each power supply. For customers with water infrastructure in their data center, the server also supports open-loop water cooling for efficient heat removal. |
| Power supply | Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 800W, 1300W, 2000W, 2700W and 3200W AC options. All AC power supplies support 230V power; some also support 115V input supply. In China only, all power supply options support 240 V DC. Support for HVDC and -48V DC power supply options. |
| Video | Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 3 management controller. Two video ports (rear VGA and optional front Mini DisplayPort); both can be used simultaneously if desired. Maximum resolution is 1920x1200 32bpp at 60Hz. |
| Hot-swap parts | Drives, power supplies, and fans. |
| Systems management | Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. Clarity Controller 3 (XCC3) embedded management based on the ASPEED AST2600 baseboard management controller (BMC) and OpenBMC, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XCC3 Premier to enable remote control functions and other features. |
| Security features | Chassis intrusion switch, Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security bezel. |
| Software | Nutanix 2.0 PnP: Starter, Pro, and Ultimate editions - Nutanix Cloud Platform, Nutanix Cloud Infrastructure, Nutanix Cloud Manager, NCI-Data |
| Hypervisors | Nutanix AHV or VMware ESXi. |
| Hardware warranty | Three-, four-, or five-year customer-replaceable unit and onsite limited hardware warranty with ThinkAgile Premier Support and selectable service levels: 9x5 next business day (NBD) parts delivered, 9x5 NBD onsite response, 24x7 coverage with 2-hour or 4-hour onsite response, or 6-hour or 24-hour committed repair (select areas). Also available are YourDrive YourData, Premier Support, and Enterprise Software Support |
| Software maintenance | Three-, four-, or five-year software support and subscription (matches the duration of the selected warranty period). |
| Dimensions | Width: 445 mm (17.5 in.), height: 87 mm (3.4 in.), depth: 796 mm (31.3 in.) |
| Weight | Maximum weight: 38.8 kg (85.5 lb) |
| Server model | Standard Open models |
|---|---|
| ThinkAgile HX650 V4 | 7DG4CTO1WW |
| ThinkAgile HX650 V4 Storage | 7DG4CTO2WW |
