The ThinkAgile HX360 V2 Edge is designed for deploying highly available, hyperconverged infrastructure (HCI) from Nutanix on purpose-built Lenovo edge servers in the remote offices/branch offices (ROBO) and at the edge. It is half the width and significantly shorter than a traditional server, making it ideal for deployment in tight spaces. It can be mounted on a wall, stacked on a shelf or mounted in a rack. The ThinkAgile HX360 V2 Edge Solution delivers fully validated and integrated Lenovo hardware and firmware that is certified for Nutanix. The ThinkAgile HX360 V2 Edge puts increased processing power, storage and network closer to where data is generated, allowing actions resulting from the analysis of that data to take place more quickly. Nutanix brings the benefits of web-scale technologies to enterprise applications through enterprise storage, data protection, infrastructure resilience, management and analytics, and security.
Configuration note:Â The ThinkAgile Enclosure is required for selection for mounting two ThinkAgile HX360 V2 Edge in a rack cabinet.
The ThinkAgile HX360 V2 Edge ship with the following items:
The ThinkAgile HX360 V2 Edge supports processors in the Intel Xeon D-2700 family of processors (formerly codenamed “Icelake D”). The server supports one processor and the processor is soldered on the system board.
The table below lists the supported processors.
All supported processors have the following characteristics:
| Machine types | 7DJD- ThinkAgile HX360 V2 Edge - 3 year warranty 7DJ7 - ThinkAgile HX360 V2 Edge 2U2N Enclosure - 3 year warranty |
|---|---|
| Form factor | Edge system, 2U high. |
| Processor | One Intel Xeon D-2700 Series processor (formerly codenamed "Icelake D"). Supports processors up to 16 cores, core speeds of up to 2.1 GHz, and TDP ratings of up to 100W. Processor is soldered onto system board. |

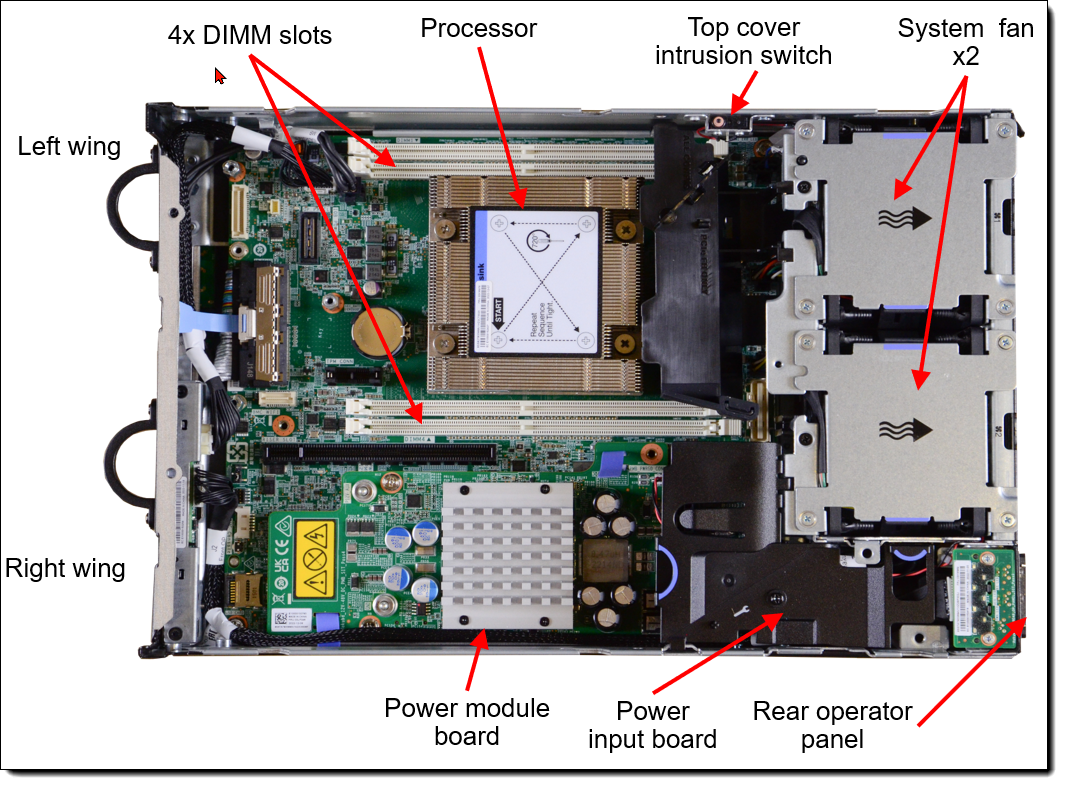

| Memory | Memory 4 DIMM slots. The processor has 4 memory channels, with 1 DIMM per channel. Lenovo TruDDR4 DIMMs operating at 3200 MHz. RDIMMs are supported |
| Memory maximum | Up to 256GB with 4x 64GB RDIMMs |
| Memory protection | ECC, SDDC (for x4-based memory DIMMs) |
| Drive bays | Internal drives for Data drive: ▪️Up to 8x 22110 NVMe M.2 drives Internal drives for OS boot: ▪️one NVMe M.2 drive |
| Maximum data storage | 15.36 TB using 8x 1.92TB M.2 NVMe SSD drives. |
| Storage controller | Boot drives: Onboard NVMe controller |
| Network interfaces | 25G/10G IO board: 4x 10 / 25GbE SFP, 2x 2.5GbE RJ45, dedicated port for remote management. The PCIe 4.0 x16 slot can also be used for an additional network card if desired. |
| PCI Expansion slots | Up to one PCIe 4.0 x16 slot: One full height half length. |
| GPU adapters | One NVIDIA A2 or L4 GPU |

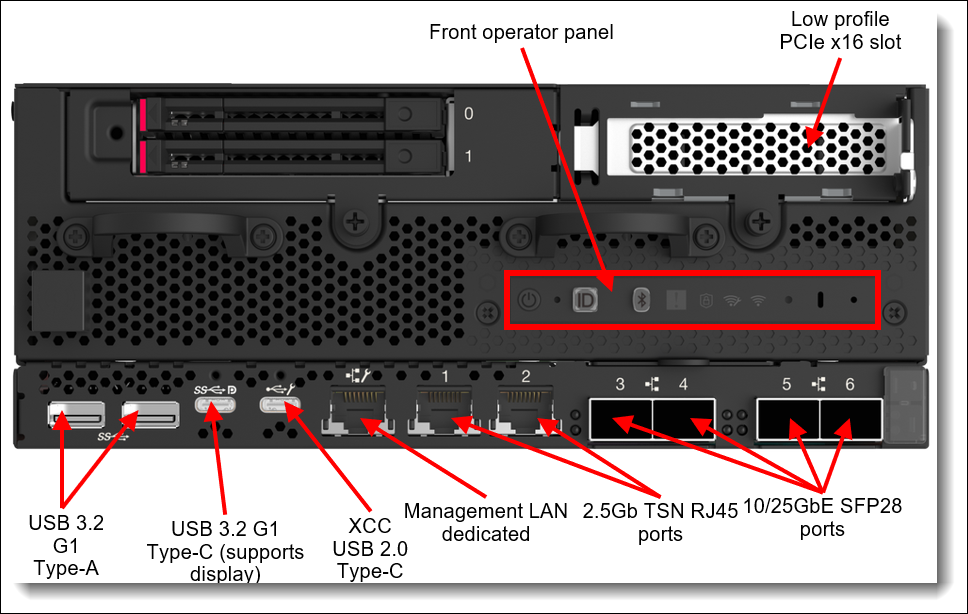

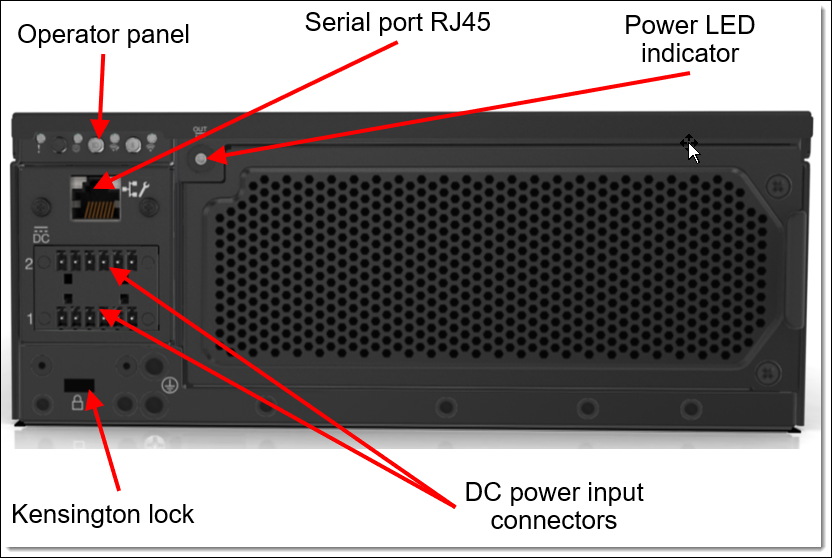

| Ports | Front: 2x USB 3.2 Gen 1 (5 Gbps) Type-A ports, 1x USB 3.2 Gen 1 (5 Gbps) Type-C, 1x USB 2.0 Type-C connector Rear: 1x RJ-45 serial port. |
| Cooling | Two non hot-swap 80mm FANs, N+1 redundant in most configurations. |
| Power supply | AC-DC converter embedded: Internal AC Power Supply (230V/115V) (0°C to 55°C) |
| Video | Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. Maximum resolution is 1920x1200 32bpp at 60Hz. |
| Systems management | Operator panel with status LEDs. Dedicated ports for local management (USB type-C for use with mobile app) and remote management (RJ45 Ethernet ports). XClarity Controller 2 (XCC2) embedded management controller, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Advanced to enable remote control functions. ThinkShield Edge Mobile Management mobile app and XClarity Mobile app for local onsite ThinkAgile HX360 V2 Edge server management. |
| Security features | ThinkShield Key Vault Portal web site for security management. Front locking bezel (optional), Kensington cable slot with intelligent lock position switch, motion detection, intrusion detection (optional), self-encrypting drive (SED) support, power-on password, administrator's password. TPM 2.0 (WW) / TCM Nation Z (China only). |
| Software | Nutanix Acropolis Pro and Ultimate editions (licenses purchased separately from Nutanix). |
| Hypervisors | Nutanix AHV, VMware ESXi. See the Operating system support section for specifics. |
| Mounting options | Standalone, desktop mount, DIN Rail or Wall mount, ceiling mount and Standard Rack (2U2N). |
| Limited warranty | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Service and support | Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications. |
| Dimensions | Height 84.5 mm (3.33 in.), width: 212 mm (8.35 in.), depth: 317.5 mm (12.5 in.) |
| Weight | Max weight: 6.5kg (14.33 lbs) – without external AC adapter Max weight: 6.572kg (14.5 lbs) – with 2 external AC adapter |
| Server Models | ThinkAgile HX360 V2 Edge ThinkAgile HX360 V2 Edge 2U2N Enclosure |
|---|---|
| Standard Open models | These CTO models are available in all markets. Configurations based on these MTMs cannot include controlled GPUs. 7DJDCTO1WW. 7DJ7CTO2WW. |
| GPU Controlled models | These CTO models are not available in affected markets. Configurations based on these MTMs must include controlled GPUs. 7DJDCTOAWW. |
