Modernize your hybrid cloud and accelerate AI capabilities to stay ahead with smarter, faster, and more efficient solutions.ThinkAgile MX and SXM Series allow customers to easily accelerate and modernize their AI and hybrid cloud infrastructure by enabling Azure cloud services at the edge and in their own datacenter.
ThinkAgile SXM 4600 42U Rack Â
Lenovo ThinkAgile SXM delivers a pre-integrated, easy-to-deploy rack-level solution for hybrid cloud to dramatically reduce time-to-value and total cost of ownership (TCO). The solution is based on Lenovo’s industry-leading data center infrastructure and Microsoft Azure Stack Hub, an extension of Microsoft Azure Services to on-premises environments.
Suggested workloads for the ThinkAgile SXM include virtual desktop infrastructure (VDI), back-office applications, server consolidation, enterprise applications, databases, test and development environments, and hybrid and private cloud implementation. Starting with as few as four nodes to keep your acquisition costs down, the solution offers “pay as you grow” scalability as your needs grow.
Non-Strategic parts. Not stocked. Availability will be subject to lead times anywhere from 8-26 wks.
The ThinkAgile SXM4600 solution is built on a minimum of four innovative and reliable Lenovo SR650v3 2U compute and storage nodes, each equipped with two Intel® Xeon® Scalable Gold 6400 / Platinum 8400 series processors and expandable, a node at a time, to the rack maximum. The SR650v3 nodes are storage dense with a high performance caching tier of four SSDs and a capacity tier of ten HDDs. Each node utilizes a high speed, dual port 10/25GbE Mellanox ConnectX™-6 network adapter and connects to a 25Gbps SN2410 rack switch.
Business with Innovation & Industry-Leading AI Solutions

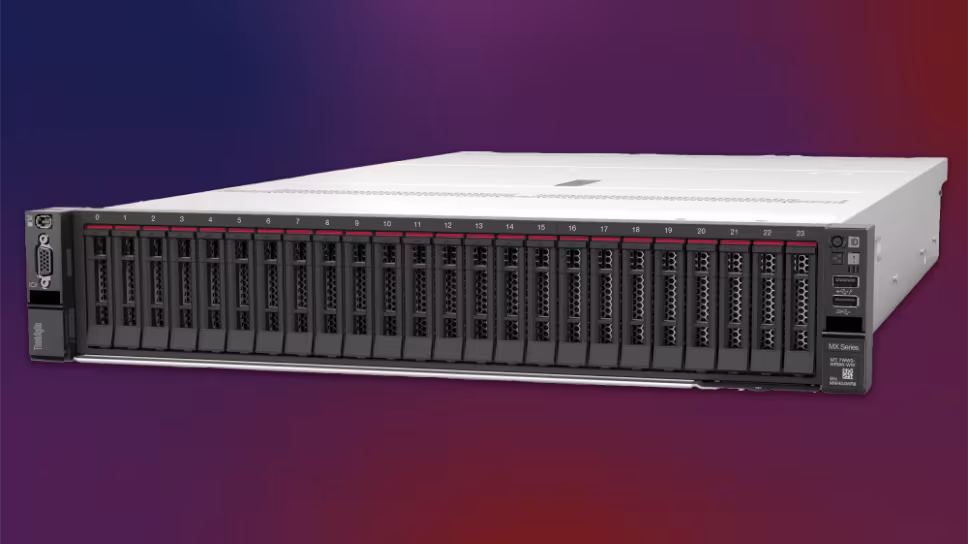

ThinkAgile MX is a fully engineered, jointly validated, and integrated solution that can extend any Azure Arc-enabled infrastructure from hybrid multi-cloud environments to the data center and the Edge. It also helps you quickly build and operate applications and services from Edge to Cloud with flexible storage and enhanced processing for AI inferencing at the Edge.
ThinkAgile SXM delivers a pre-integrated, easy-to-deploy solution that dramatically reduces time-to-value by seamlessly integrating infrastructure across applications, which reduces ownership costs. It also offers Azure cloud services from the security of your own data center and unifies application development across the entire hybrid cloud environment.
What’s New?
ThinkAgile MX V4 Series with Intel® Xeon® 6 Processors. Scale your Azure workloads from Edge to Cloud.
Did you know?
The ThinkAgile SXM ships fully integrated into a rack cabinet, tested, configured, and ready to be plugged in and turned on; it is designed to integrate into an existing infrastructure effortlessly, to accelerate time to value and reduce infrastructure maintenance costs.
There is no up-front cloud software license acquisition cost for the ThinkAgile SXM solution, monthly billing is based on the actual resource usage (capacity-based licenses are also available).
Lenovo provides ThinkAgile Advantage Single Point of Support for the entire ThinkAgile solution with the nodes, networking, and software, for quicker problem determination and minimized downtime.
Key features
The Lenovo ThinkAgile SXM solution integrates computing, storage, networking, and management, and it is designed with industry-standard building blocks, including hyperconverged nodes that are built on powerful and highly reliable Lenovo ThinkSystem servers and Microsoft Azure Stack Hub software that extends Azure technologies on-premises.
The ThinkAgile SXM4600 solution is housed in a 42U rack and can be scaled from 4 to 16 nodes.
The solution can also be deployed in a customer-provided rack cabinet with scaling from 4 to 16 nodes.
ThinkAgile SXM offers the following key features:
Components
The ThinkAgile SXM solution consists of the following hardware components:
The SXM630 V3 management node, referred to as the “Hardware Lifecycle Host” or “HLH”, provides hardware management services and includes the following software components:
The SXM650 V3Â hyperconverged scale unit nodes provide compute and storage resources and include the following software components:
Network connectivity is provided by three Cisco network switches. Two Cisco Nexus N9K-C93180YC-FX3 switches provide 25GbE throughput for general network traffic. These switches are referred to as “TOR-1” and “TOR-2″. A single Cisco Nexus N9K-C9348GC-FX3 switch provides 1GbE throughput for management traffic. This switch is referred to as the “BMC” switch

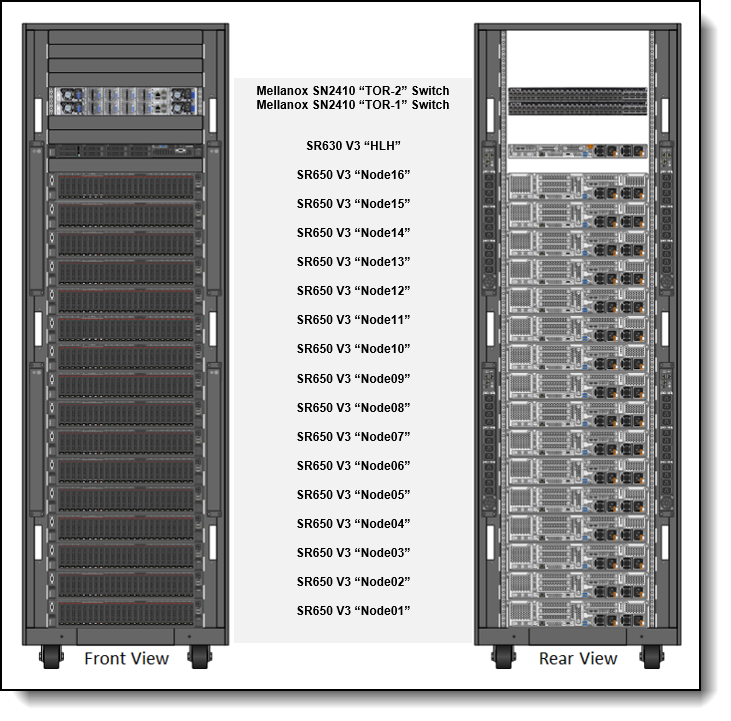

The front and rear views of the ThinkAgile SXM4600 Hybrid 42U are shown in the following figure. Scale unit nodes 05-16 are optional.
| Form factor | 42U Rack cabinet (7D6DBHC3) |
|---|---|
| Dimensions | Height: 2011 mm Width: 600 mm Depth: 1200 mm |
| Total rack load capacity | 953 kg |
| Maximum rack weight | 1588 kg |
| AC power distribution | 4x C19/C13 PDUs: 3-Ph, 80A/200-240V C13/C19 PDU 3-Ph, 60A/200-240V C13/C19 PDU 3-Ph, 48A/200-240V C13/C19 PDU 3-Ph, 48A/346-415V C13/C19 PDU 3-Ph, 32A/200-240V C13/C19 PDU |
| Hardware warranty | Three-, four, or five-year customer-replaceable unit and onsite limited warranty with ThinkAgile Advantage Support and selectable service levels: 9x5 next business day (NBD) parts delivered or onsite response, 24x7x4 or 24x7x2 onsite response or 6-hour or 24-hour committed repair (select countries). Also available are 1-year and 2-year post-warranty extensions, YourDrive YourData, and Premier Support. |
| Software | Microsoft Windows Server 2019 with Hyper-V, Microsoft Storage Spaces Direct, Microsoft Azure Stack Hub, Lenovo XClarity Administrator Pro |
| Base model | Lenovo SXM630 V3 (7D73CTOAWW) |
| Quantity | 1 |
| Processor | Two Intel Xeon Gold processors |
| Memory | 128 GB (8x 16GB TruDDR5 RDIMMs). ECC, patrol scrubbing, and demand scrubbing memory protection |
| Drive bays | 8x 2.5-inch SAS/SATA hot-swap |
| Internal storage | 2x ThinkSystem 2.5" PM1655 800GB Mixed Use SAS 24Gb HS SSDs (RAID-1 boot volume) |
| Storage controller | ThinkSystem RAID 540-8i PCIe Adapter (12 Gbps SAS) |
| Network interfaces | Management network: 1x 1 GbE dedicated XCC management port (RJ-45) VM/storage network: 1x ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-port PCIe Ethernet Adapter |
| Ports | Front: 1x USB 2.0 port with XClarity Controller access, 1x USB 3.0 port Rear: 2x USB 3.0 ports and 1x VGA port |
| I/O expansion slots | BLKF V3 1U x16/x16 BF PCIe Gen4 Riser1 BLKG - V3 1U x16 PCIe Gen4 Riser2 Three slots: Slot 1: x16; low profile (for the network adapter) Slot 2: x16; low profile Slot 3: x16 (for the RAID adapter) |
| Management features | Lenovo XClarity Controller 2 (XCC2) Enterprise, proactive platform alerts, light path diagnostics, Lenovo XClarity Administrator with Pro license |
| Security features | Chassis intrusion switch, Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security bezel |
| Video | Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. Maximum resolution is 1920x1200 at 60 Hz with 32 bits per pixel |
| Cooling | Seven hot-swap system fans with N+1 redundancy |
| Power supplies | Two redundant hot-swap 750 W High Efficiency Platinum or Titanium AC power supplies |
| VM/storage network | 2x Cisco Nexus 9300-FX3 Series Switch 25 GbE network switches, each with 48x 10/25 GbE SFP28/SFP+ and 6x 100 GbE QSFP28/QSFP+ ports |
| VM network uplinks | 4x 10 GbE SFP+ SR or 4x 25 GbE SFP28 SR upstream connections (2x per switch) with customer-supplied MMF OM3 or OM4 fiber optic cables with LC connectors |
| Cooling | 4x hot-swap fans |
| Power supplies | 2x 460 W AC redundant hot-swap power supplies |
